This is pretty esoteric, but still fun to do; I got to work on returning my sample blade to a nice, high polish, working with the 1000# diamonds, SF Ceramics, some lapping films and strops 14/10, 5/3.5, 1/.5 and .25/.125. I won’t bore with pictures from each phase right now, just the final edge:

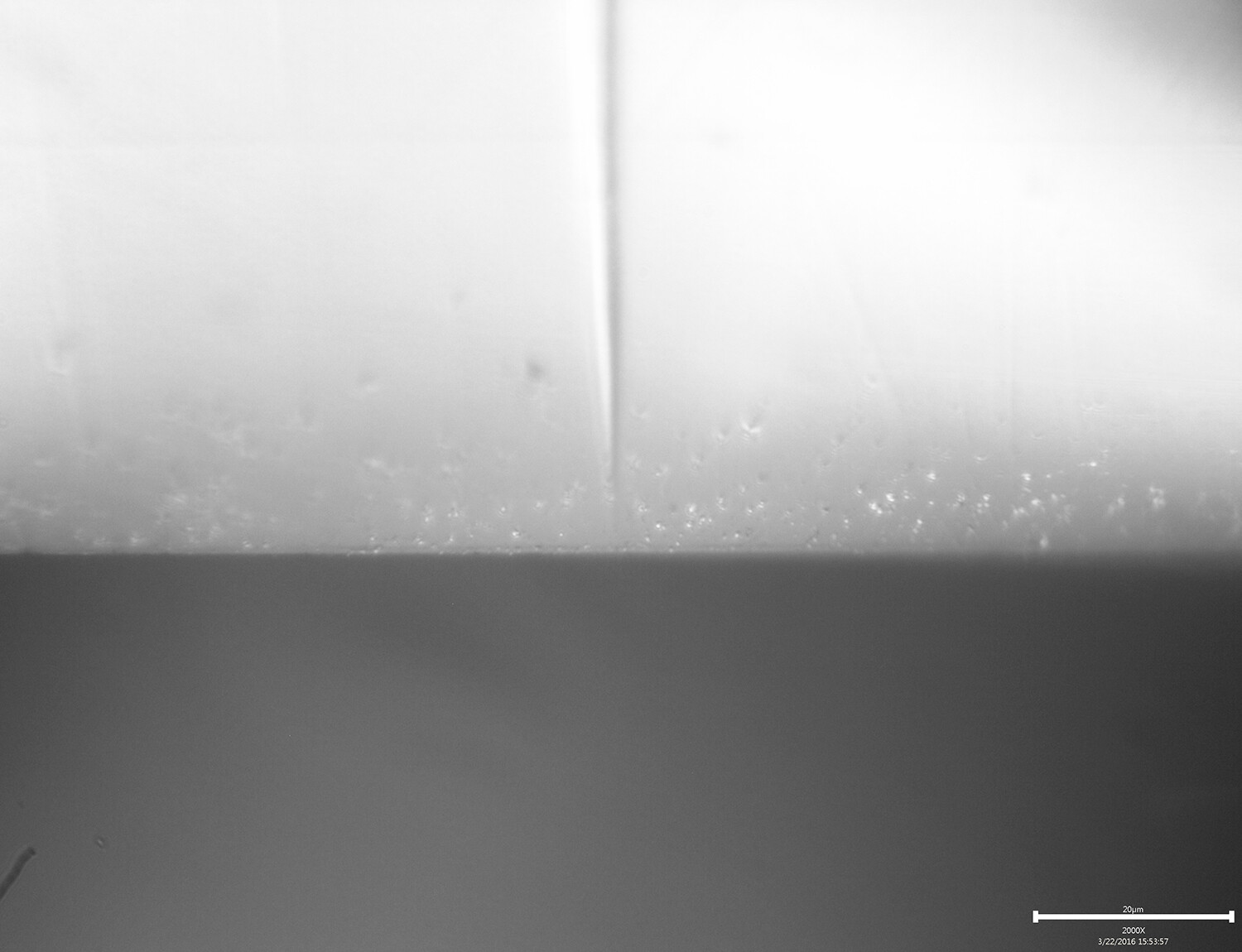

This first image is of a nearly perfect edge, with one lone scratch, which was intriguing so I followed it out along the whole bevel to the shoulder. The edge is convexed from 16° to 20° and what I found interesting is how the highest point in the curved shoulder has the deepest, messiest scratches. What I mean by “highest point” is that there is a convex curve from the shoulder to the edge with some point in the middle being the highest point in the curve, or the furthest from a straight line that would run between the shoulder and the edge. Here are some shots traveling away from the edge toward the shoulder:
The scratches appear to be deepest in image “Scratch-C”, which would represent the highest point in the curve. I know this isn’t particularly helpful in producing a sharp edge, just interesting to see the effects of the abrasives on a convex edge.
Very interesting Clay! But in a way it makes sense to me at least…where is most of the metal removed when going from stones to strops? The edge and shoulder. Although you world think the high spot would have the most abrasion wear.
Clay has been showing us microphotos in sets of three; the edge, the bevel and the shoulder. The intent being to better understand the effects of the abrasive across the entire width of the bevel. In this case, he’s showing us a photo of an edge he had polished out to a high degree, but then he noticed a scratch and decided to take photos of that scratch as his 2000X 'scope moved away from the edge. It might have been less confusing if the photos had been inverted.
Sometimes Bill you make the most poignant comments, thank you! I’d been working on another thread (https://knife.wickededgeusa.com/forums/topic/strops-or-stones/) started by dulledge , having a conversation running with some of the guys about how the ceramic stones work versus the diamond plates and diamond lapping films. The guys made recommendations about the order I should use the stones/strops/films to investigate what was most efficient and then I photographed the results under the microscope at 2000x. I think it was a great learning opportunity for me. Anyway, when I started this new thread, I was continuing the conversation in my mind and never paused to think that someone who hadn’t followed that conversation would have no idea what I was talking about! Thanks for pointing it out.
As Tom said, the pics should be in a different order. The top pic show the edge of the edge. The bevel is very smooth, but there is one scratch. The other pics show more parts of the scratch. On the third pic, named Scratch-C you see the scratch is the deepest. Clay explained that the edge is convex and I think Josh (RazorEdgeKnives) gave a good explanation of why the scratch is the deepest on the third pic, where the “highest point” of the bevel is. I am not sure which parts of the bevel the pics called Scratch-B and Scratch-D show.
Clay uses quite a different microscope than us, mortals. Much better images and a magnification of 2000x (yes, 2000 ). With that in mind it is even more remarkable the the majority of the bevel looks so smooth. Stropping really works.
The magnification of these images is very high, so it’s hard to know what you’re seeing. I’ve added some labels to one of the images so you can see it better:
[attachment file=“Scratch-A—Labelled.jpg”]
The scratch measures 2.5µ at its widest in this picture and we’re only looking at about 55µ (0.002") of blade width from the edge. The other images show different sections of the bevel going back from the edge toward the shoulder. If the image section of blade being shown is using all the height of the image, then you’re looking at a section that is roughly 80µ (0.003") wide.
